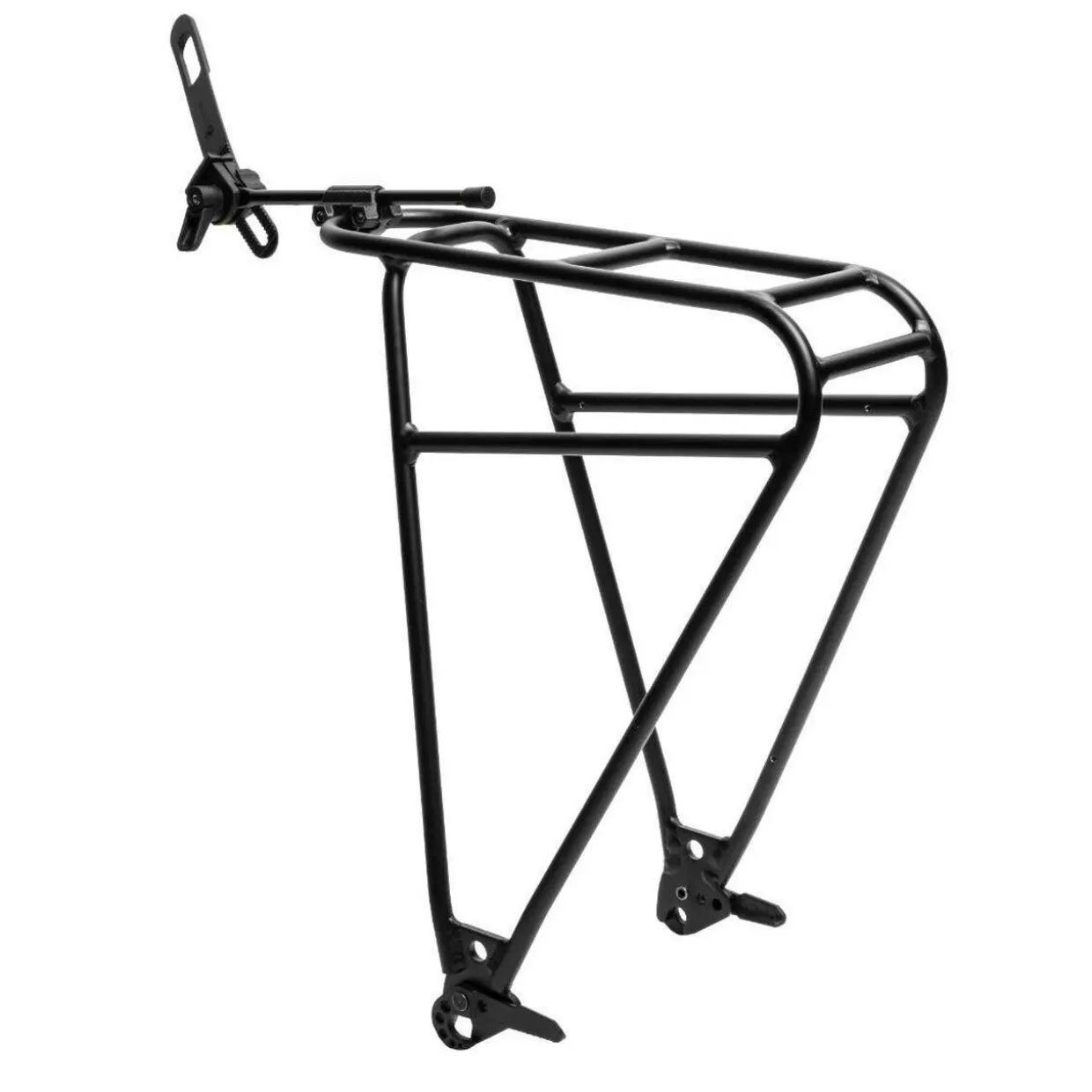

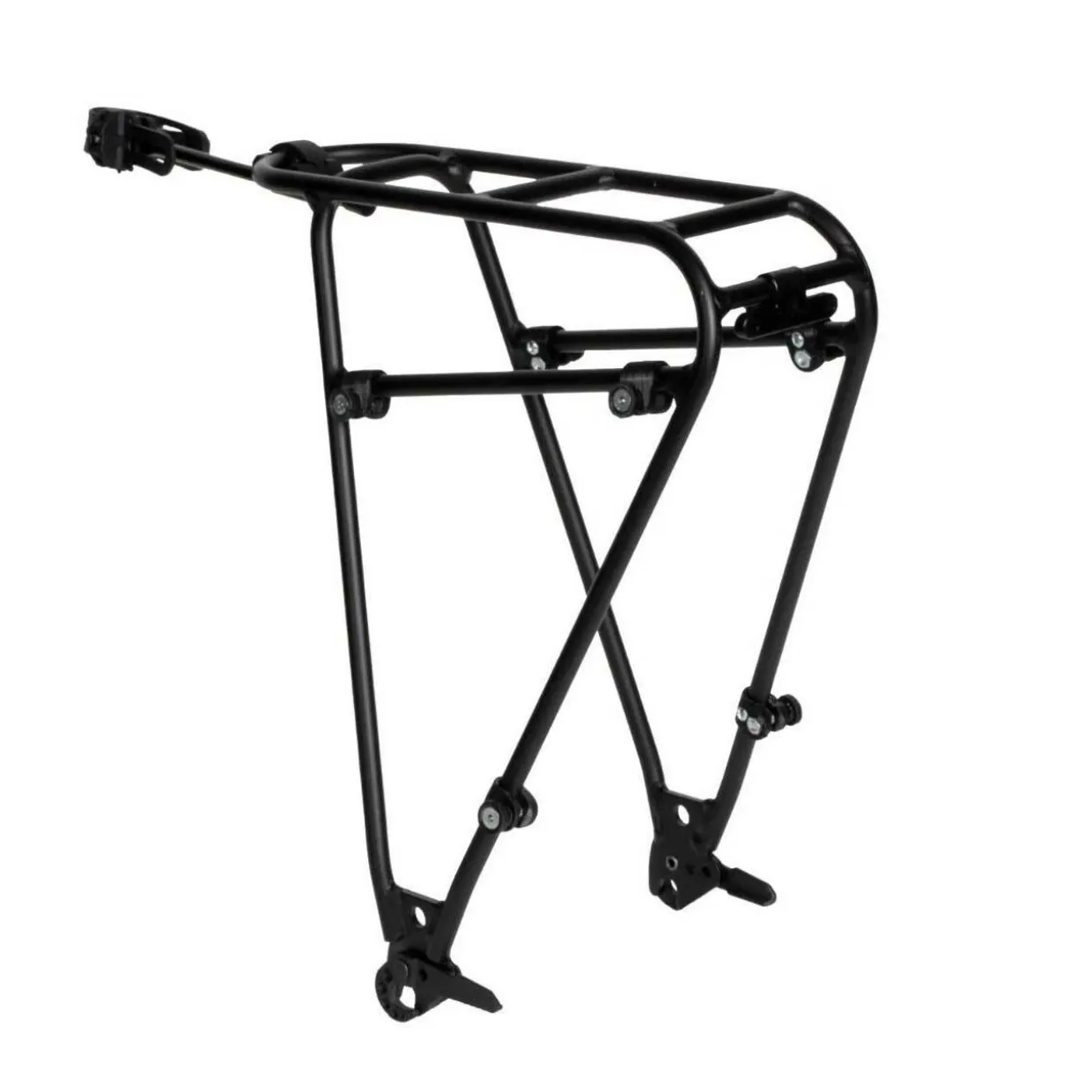

Quick Rack

Jump to: Our Verdict / Features / Specifications

From road, gravel or mountain bike to commuter bike in only 15 seconds – with the innovative Quick Rack, you transform your sporty bike into an all-rounder for everyday use.

Ortlieb says:

Transform your bike in no time at all from a lightweight bike for sporty tours into a transport bike for shopping and commuting – this way you stay completely flexible. Fifteen seconds is all it takes to mount the practical luggage rack and only five seconds to remove it again. The struts with a diameter of 10 mm support a payload of up to 20 kilograms. The Quick Rack is of course suitable for use with all of our fixation systems so that you can combine it with any ORTLIEB bag. Thanks to the two hanging levels and a platform, you can also use and fasten panniers and a basket at the same time. The optional mudguards make sure that you keep dry and clean in bad weather too.

Our Verdict

From road, gravel or mountain bike to commuter bike in only 15 seconds – with the innovative Quick Rack, you transform your sporty bike into an all-rounder for everyday use.

– Reviewed by Ultralight Outdoor Gear

Features

• Lightweight bicycle rack with quick release system for rapid installation and removal
• 5/15 method: 5 sec removal, 15 sec installation
• Quick transformation from race bike to commuter bike
• Leaves a clean bike, no fixed rack
• Fits frames with M5 or M6 rack eyelets
• Can be used with full suspension bicycles
• Different stay lengths allow a universal fit
• Touring rack with two hook-in levels, e.g. for simultaneous use of a rack top basket and panniers
• Allows for direct attachment of all bags with QL1/2.1/3/3.1 and the Top-Lock System
• QL3/3.1 attachment elements can be removed
• Suitable for 26“-28“ and 29“ (limited compatibility)
• Horizontal and vertical struts with 10 mm tube diameter
• Includes a complete mounting kit: no additional adapters required for most applications
• Mounting bracket for optional rear light (light not included)

Specifications

• Weight: 580g
• Wheel size: 26“-28“, 29“ limit. compatibility
• Tube Diameter: 10 mm
• Width support surface: 100 mm
• Max width: 190 mm
• Maximum load capacity: 20kg / 44.1lbs
• Material: Aluminium
